How to tell if a USB-C cable is for video or just charging

The USB-C port is identical on all cables, but their capabilities vary. While some can transmit data and 4K video by default, others are only suitable for charging your battery. In this article, we'll show you how. How to tell if a USB-C cable is suitable for video or just for charging. You'll learn to identify them by analyzing their logos, thickness, technical specifications, and running some quick tests. Let's begin.

How to tell if a USB-C cable is for video or just charging

How to know if a USB-C cable is for video or only for charging It is not possible to see it with the naked eye in most casesThis is because the physical connector is exactly the same. If you want to identify it without the hassle of testing cable by cable, there are some features that will help you:

• The symbols printed on the connector.
• The thickness and rigidity of the cable.
• The technical specifications of the data sheet.
• Rapid tests.

Of course, knowing whether a USB-C cable is for video or just charging is only one of several important aspects. To transmit video, your devices must meet specific hardware and software specifications; simply having the right cable isn't enough. First, let's take a look. How to identify a USB-C video cable And then we'll talk about the other minimum requirements for video streaming.

1. Check the markings or logos on the connectors

Certified cables that support video usually have some identifying symbol near the connector:

• DisplayPort symbol (a large D with a P inside): Indicates native video output support.
• Thunderbolt logo (a lightning bolt): If there is a lightning bolt icon with a number 3 or 4 or a simple lightning bolt, the cable supports high-resolution video (4K/8K), high-speed transfer, and fast charging.
• USB-IF symbol with speed: If the USB logo includes the speed "20 Gbps" or "40 Gbps", it can almost certainly transmit video. If it indicates "480 Mbps" or only shows the battery/wattage icon, it's only for USB 2.0 charging and data transfer.

2. The thickness and rigidity of the cable

Although it's not a determining factor, the thickness and rigidity of the cable will help you know if a USB-C cable is suitable for video or only for charging. This is the main difference:

• Charging-only cables: They are generally thinner, very flexible, and usually long (around 1.5 m to 2 m). They consist of power lines and a pair of wires for basic data.
• Cables with video support: They are much thicker, less flexible, and shorter (around 0.8 m to 1 m). This is because they include shielding braiding and more than 15 internal wires dedicated to high-speed lines.

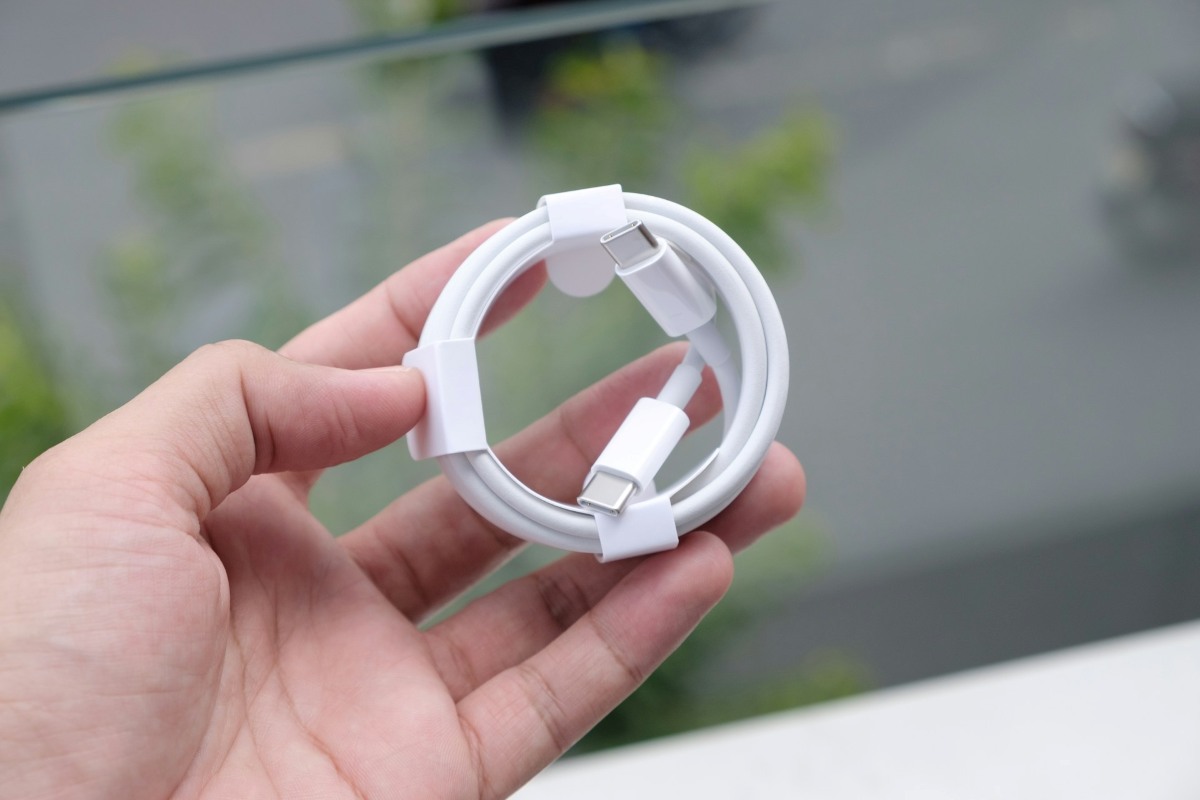

3. The technical specifications of the data sheet or box

Now, if you're going to buy a USB-C cable or still have the box for the one you have, look for these. exact specifications which will help you determine if a USB-C cable is for video or only for charging:

• DisplayPort Alt Mode or DP Alt ModeYes, it works for video. It's ideal for video monitors and printers.
• Thunderbolt 3 or 4 or USB4: Yes, it works for video.It supports 4K/8K video, 40 Gbps data and upload.
• USB 3.2 Gen 2 (Gbps) Gen 2×2 (20 Gbps): Yes, it works for video. (4K video at 60 Hz).
• USB 2.0 (480 Mbps): Not suitable for videoIt is only suitable for slow file uploads and transfers.
• Fast Charging / Charge Cable (60 W/100 W/240 W): Not suitable for videoUnless clearly stated “DP Alt Mode”, it is for power only.

4. Rapid screening test in the system

What if you don't have the box and your cable has no logos or icons anywhere? Your only option is... test the cable connecting it to a TV, USB-C monitor or Docking Station from a laptop or phone that supports video output. Try the following:

• On Windows: Connect the cable to the monitor. If you hear a connection tone, but the screen remains black or displays a "No Signal" message and the laptop starts charging, the cable is for charging only.
• In Device Manager: If you connect the monitor and Windows displays the alert “The function of the USB device may be limited.”The cable does not have the bandwidth for video.

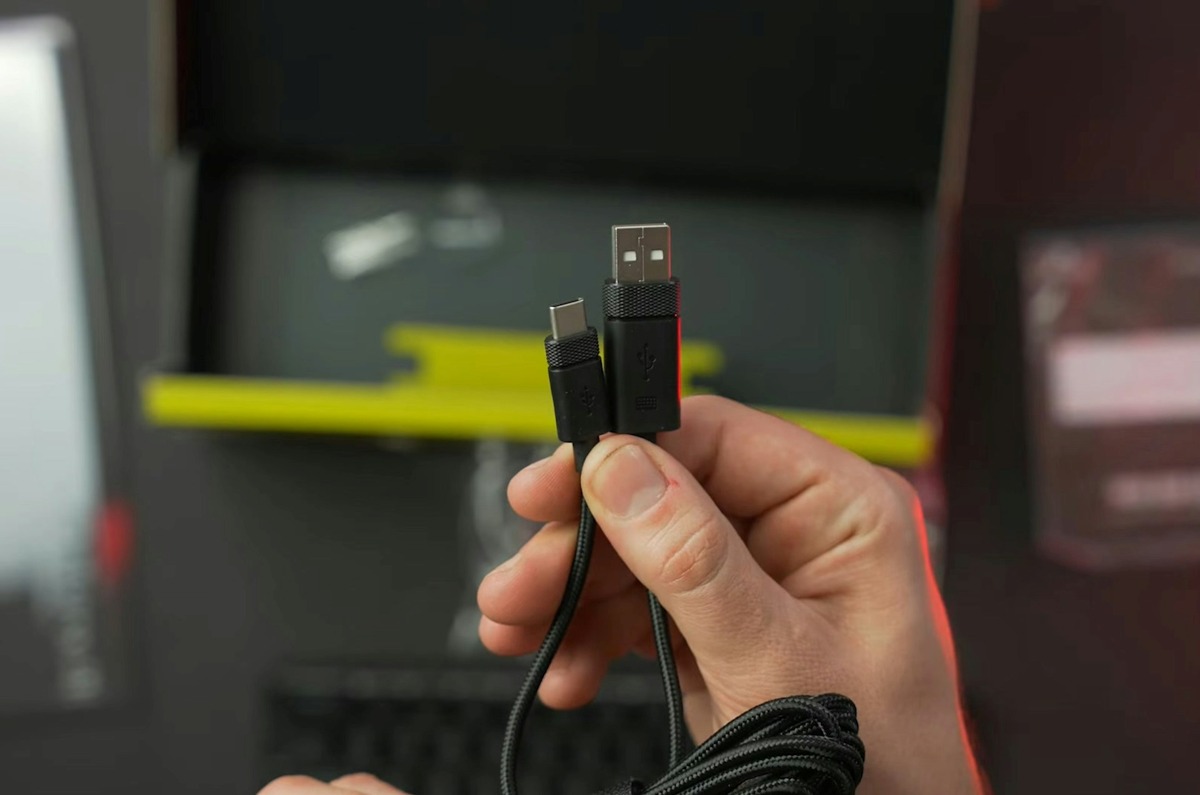

Other requirements for transmitting video besides knowing if a USB-C cable is suitable for video

In addition to knowing if a USB-C cable is suitable for video, when transmitting video through a cable, Both the transmitting and receiving devices must meet certain specifications. how are you:

1. The transmitting device (Laptop, PC or Mobile)

• Video output via USB-C DisplayPort Alt Mode: If you connect a mobile phone, tablet, or laptop via USBC, the physical port must natively support DisplayPort Alternate Mode technology.
• Graphics processing and resolution: The graphics card must be capable of processing the target resolution and refresh rate.

2. The receiving device (Monitor, TV or Projector)

• Compatible input port: It must have the corresponding physical interface (HDMI, DisplayPort, USB-C with DisplayPort support or Thunderbolt) and support the same protocol version.
• HDCP Compatibility: If you want to stream protected content from streaming platforms like NetflixThe screen must comply with the HTCP 2.0 standard or higher.

What can you do when you find out if a USB-C cable is for video or only for charging?

Knowing whether a USB-C cable is for video or only for charging will help you if you want to transmit a screen signal from an emulator device to a monitor or TV using the same port and cable you normally use to transfer data or charge the battery. In fact, one of the biggest advantages of this cable is that You can do three things at the same time:

1. Send the image and sound signal to the screen.
2. Send power from the monitor to the laptop.
3. Use the monitor's USB ports.

Furthermore, if the cable is suitable for video, you can connect very thin laptops to cell phones or traditional monitors, televisions, or projectors. You can also use it to extend your screen on compatible mobile phones and tablets. So, in short, Knowing whether a USB-C cable is for video or only for charging will always be useful..
