- Setting up open-source media servers to manage personal libraries.
- Remote connection methods using port forwarding on the router or virtual networks.
- Multi-platform support to enjoy content on Smart TVs, mobiles and computers.
- Hardware optimization and security through the use of proxies and SSL encryption.
Imagine having your own personal Netflix, with all those series and movies you love, available anywhere in the world. To achieve this, Jellyfin It presents itself as a brutal open-source solution that lets you centralize all your content multimedia on a home server and stream it to any device you have on hand.
If you've already got it working in your home, you'll have noticed that it's a versatile and very stable tool. However, the real challenge begins when you want to enjoy your library While you're in the office or traveling, it requires specific network settings to ensure that external traffic reaches your computer smoothly.
What exactly is Jellyfin and how does it work?
Basically, Jellyfin is software that organizes your video, music, and photo files, automatically adding cover art and metadata so everything looks perfect. It uses a model of client-server architecturewhere the server is the computer that stores the files and the client is the app or browser from which you play the content.
Among its most powerful advantages is the real-time transcodingThis means the server adjusts the video quality on the fly to prevent buffering, even if your internet connection isn't the best. It also allows you to create separate user profiles, manage live TV recordings, and is compatible with... multiple operating systems such as Windows, Linux, and macOS.

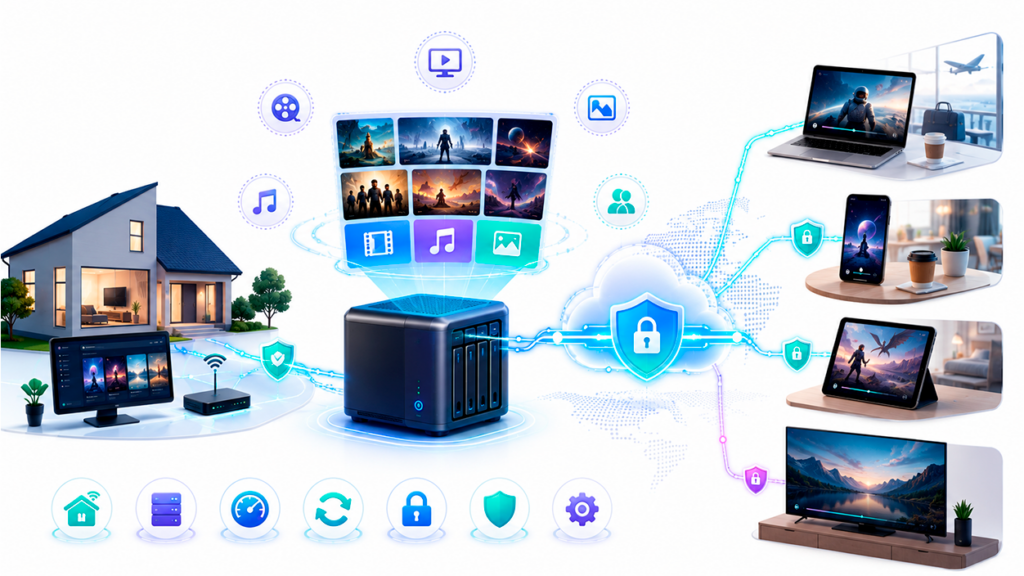

Ways to configure remote access
To make your server visible from outside your Wi-Fi network, you have two main options. The first is the traditional method, which involves Open ports on the routerThis process involves telling your router that all traffic arriving through a specific port (usually 8096) should be directed to your computer's IP address.
If you don't want to complicate your life with technical network configurations, there are modern alternatives such as NordVPN MeshnetThis tool creates a virtual private network that allows you to connect your devices without needing to touch the router, making remote connection easier. free and hassle-free, ideal for those who don't want to deal with managing public IPs.

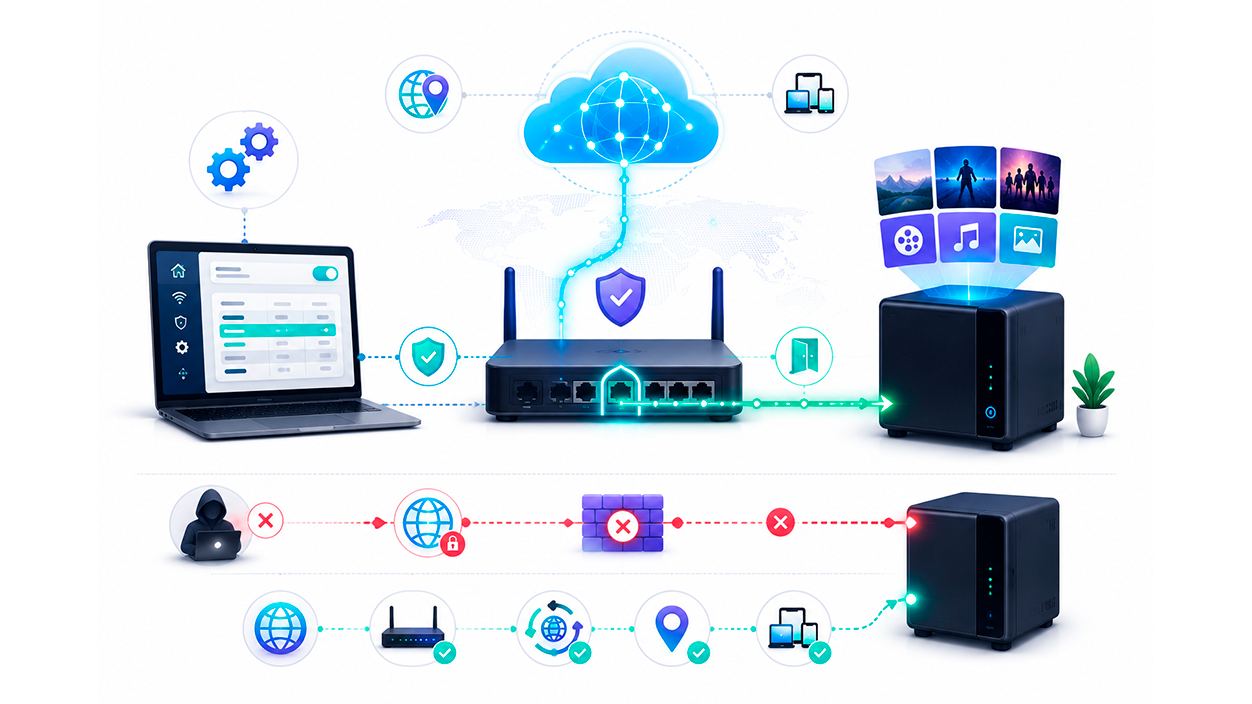

Step-by-step guide for port forwarding
If you choose the manual method, the first thing to do is access your router's settings, usually in the advanced section, and look for the option to port forwardingHere you will need to create a rule where the external and internal ports match the one Jellyfin uses, which by default is the port 8096.
Once the rule is activated, you need to know your public IP addressYou can easily find it using any IP lookup website. To access it, simply type that IP address followed by a colon and the port (example: 123.45.67.89:8096) into the browser of any external device.
If you notice that it's not working, your carrier may be using CGNATa system that prevents ports from being opened. In that case, you would have to ask your provider to assign you a real public IP address or use a service of Dynamic DNS (DynDNS) if your IP address changes periodically.
Recommended hardware and optimization: The ZimaBoard case
Although you can use an old laptop, there are compact and powerful solutions like the ZimaBoard SBCThis device is ideal because it consumes very little energy and has enough power to handle several simultaneous transmissions thanks to its Intel Celeron processor and its 8GB of RAM.
Installing Jellyfin on this type of hardware is very simple, either through a direct installer or using Docker for greater flexibility. To improve performance, it is recommended to connect external SSD hard drives and adjust the transcoding settings depending on the hardware power to prevent the video from freezing.

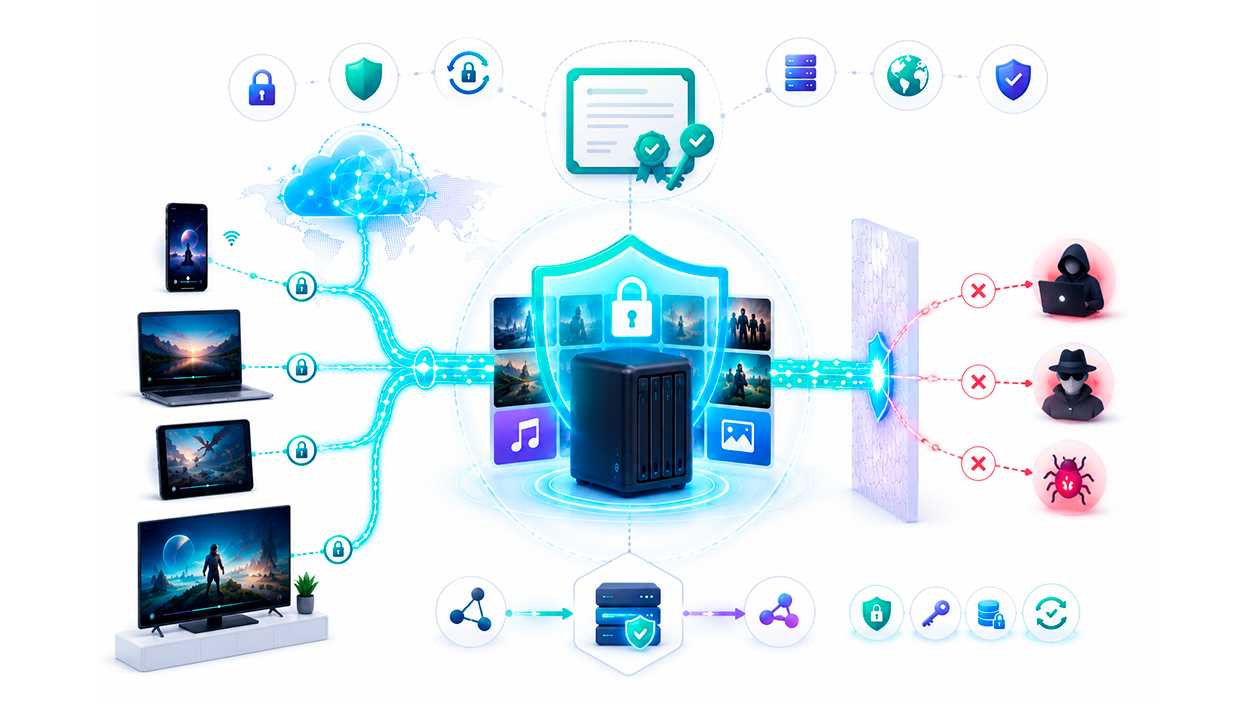

Configure HTTPS with SSL/TLS for secure access
Opening the Jellyfin port and accessing it via an IP address works, but it's not the best option if you frequently connect from public networks or away from home. Ideally, you should configure an SSL/TLS certificate so that all communication between your devices and the server is encrypted, preventing third parties from intercepting credentials or sensitive information.
The most common way to do this is through Let's Encrypt, a free service that generates valid certificates for your domain. To simplify the process, many users opt for tools like Nginx Proxy Manager, Caddy, or a traditional reverse proxy with Nginx, as these automate certificate acquisition and renewal with minimal manual intervention.
In addition to improving security, using HTTPS eliminates browser warnings about insecure connections and facilitates integration with mobile apps, smart TVs, and external clients. If you plan to expose Jellyfin to the internet permanently, configuring SSL/TLS should be considered practically mandatory to protect both your media library and user login credentials.
Safety and additional tips
Opening ports can leave security holes in your network, so it's highly recommended to implement a reverse proxy with NginxThis not only makes the access URL look more professional and attractive, but also adds an extra layer of protection to the server. Similarly, enabling encryption is recommended. SSL/TLS It is essential to ensure your data travels securely.
Don't forget to check the Windows or macOS firewallbecause they often block external requests even if the router is properly configured. Make sure the network is configured as private and not public in your operating system settings to allow data flow correctly.
Having a media server accessible from anywhere is possible by combining the right software with a correct network configuration, whether by manually opening ports, using virtual networks like Meshnet, or deploying on specialized hardware like ZimaBoard, always prioritizing data encryption and efficient transcoding management for a smooth experience.
